15 Heads & 1.9 m FD61915E-A Large Format Dye Sublimation Printer For Heat Transfer Paper I3200A1
Do you konw what is sublimation printing?
Sublimation printing is a printing technique that uses heat to apply ink to a substrate. The inks can penetrate the surface of the substrate when they are gaseous by exerting pressure using a heat press. So the ink will become a part of the substrates, making the products more durable. Due to this feature, many companies choose sublimation printers to print large outdoor banners and advertisements.
Do you konw what is sublimation printing?
Sublimation printing is a printing technique that uses heat to apply ink to a substrate. The inks can penetrate the surface of the substrate when they are gaseous by exerting pressure using a heat press. So the ink will become a part of the substrates, making the products more durable. Due to this feature, many companies choose sublimation printers to print large outdoor banners and advertisements. Now, I will introduce you to our star product FD 61915E-A:
Features:
1.With single EPSON I3200-A1 printhead,
𝗛𝗶𝗴𝗵 𝘀𝗽𝗲𝗲𝗱 𝗺𝗼𝗱𝗲:
240X1800 (or 360*1200) 1PASS: 610㎡/h
240X3600 (or 360*2400) 2PASS: 300㎡/h
𝗛𝗶𝗴𝗵 𝗿𝗲𝘀𝗼𝗹𝘂𝘁𝗶𝗼𝗻 𝗺𝗼𝗱𝗲:
360X1800 1PASS: 430㎡/h
360X3600 2PASS: 220㎡/h,
2.Famous Honson control system,stable mechanical strucuture,high quality control system with over 15 years experience of manufacture.
3.Printing with gradual change and feathering technology to remove printing lines effectively.

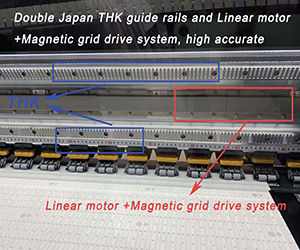

4.HIWIN linear rail with double sliders ensures smooth and stable carriage movement.
5.LeadShine servo motor for the carriage movement, higher accuracy, lower noise,
6.Automatic paper feeding, ink pumping, print head wiping and cleaning.
7.Auto bulk ink supply system.
8.Intelligent and patented print head maintenance device with auto clean and moisten
9.Middle and front heating system with temperature controller,hot air drying system.
10.With optical fiber instead of flat cable for inner communication, more faster speed and stable
11.Constant tension media feeding and auto take up system.
How Does Sublimation Printing Work?
- Design Creation: First, a design is created on a computer using specialized software to achieve the desired pattern.
- Printing the Graphic on Transfer Paper: The design is printed onto transfer paper using dye sublimation inks. These inks are specially formulated to create vivid graphics on the transfer paper, ready for the sublimation process.
- Preparing the Medium: The printed transfer paper is placed onto the target material, ensuring that the graphic faces the medium to ensure accurate transfer.
- Heat and Pressure Application: The sublimation printer applies intense heat and pressure using powerful rollers, heaters, and ink spray heads. The high temperature and pressure cause the ink to sublimate, turning directly from solid to gas without becoming liquid.
- Ink Saturation: The gaseous ink then permeates the medium, becoming trapped within its fibers. As the heat is removed, the ink cools and solidifies within the material, creating a vibrant, permanent print.
- Finishing Touches: Once the transfer paper is removed, the print studio may apply a protective sealer or perform additional finishing, like cutting or trimming, if needed.
Why Choose Sublimation Printing?
Sublimation printing stands out for its exceptional quality, durability, and versatility. Unlike traditional printing methods, it infuses dye directly into the fabric fibers rather than just coating the surface. This technique results in vibrant, long-lasting colors that won’t fade, crack, or peel over time.
Sublimation printing is ideal for producing high-quality, detailed images, making it a top choice in industries like apparel, promotional products, and home decor. The dye’s molecular bond with the fabric allows the print to retain the material’s soft and flexible feel, which is especially important for activewear and other comfortable clothing items. It works best with polyester fabrics, making it an excellent fit for performance-focused textiles.
In summary, sublimation printing is a durable, cost-effective option for those who want professional, full-color designs with a lasting finish.
