3 Heads 1.9m Fedar FD5193E Dye Sublimation Textile Printing Machine

Fedar FD5193E Dye Sublimation Printer Specifications:
Printhead: 3*EPSON I3200-A1
Printhead Resolution: 3200DPI
Printing Speed: 120sqm/h
Print Width:1900mm
Ink: Dye Sublimation Ink,Pigment Ink
Media:Transfer Paper ,Poster Paper
RIP Software: Maintop, Photoprint,Neostampa,Onyx,etc.

Rated 4.7/5 based on 249 customer reviews
Share:
Content

The Fedar FD5193E dye sublimation textile printer features three advanced printheads for increased efficiency and productivity. With a print width of 1.9 meters, this state-of-the-art printer offers versatility and precision for a wide range of textile printing applications.

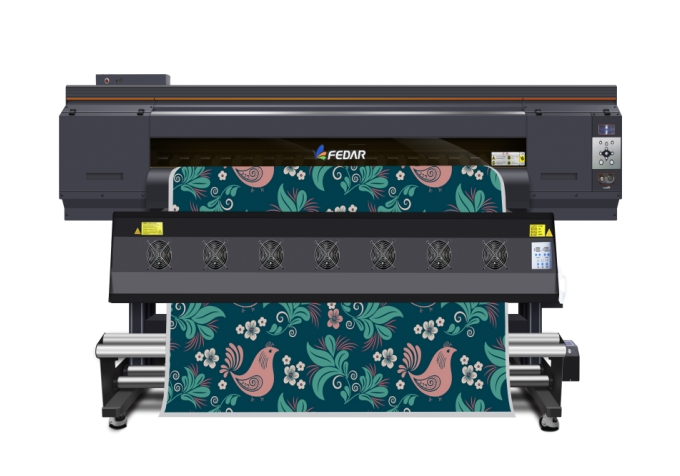

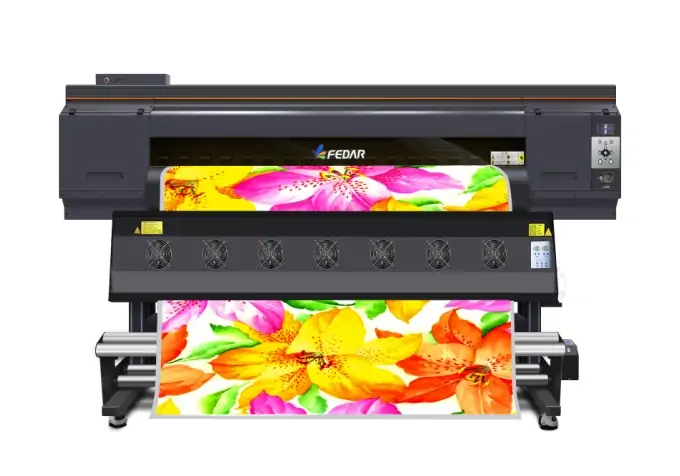

Fedar FD5193E Dye Sublimation Printer

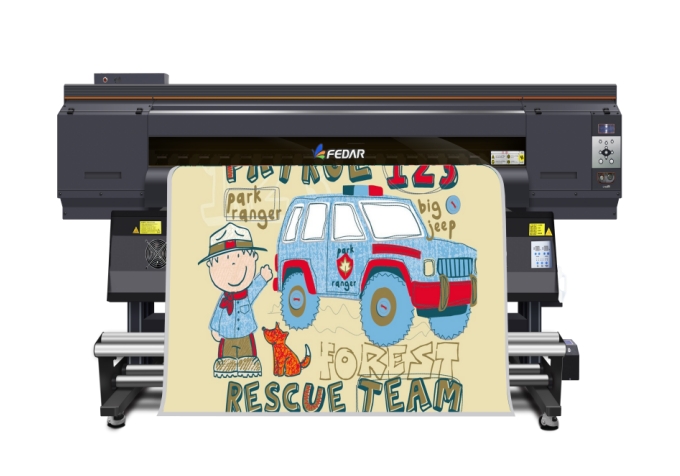

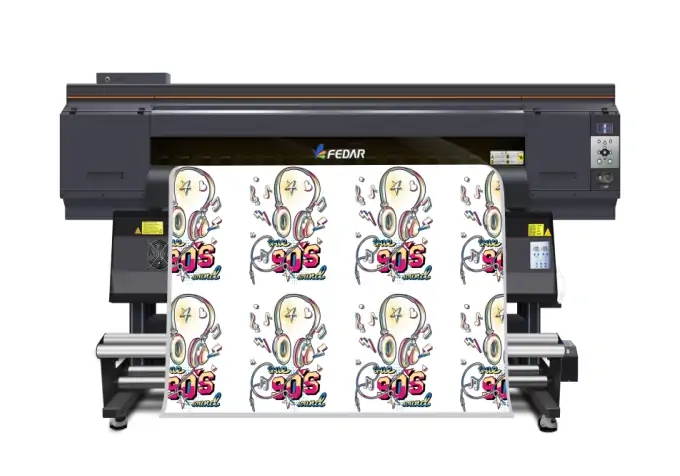

Fedar FD5193E Dye Sublimation Printer

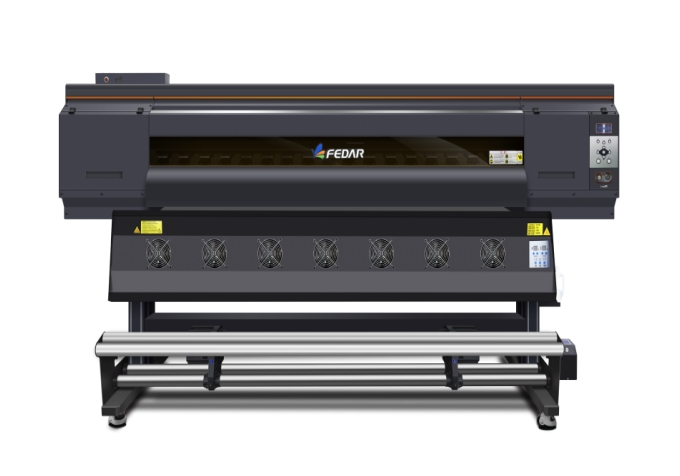

Fedar FD5193E Dye Sublimation Printer
Fedar FD5193E Dye Sublimation Printer

Experience seamless operation and high-quality results with the Fedar FD5193E. Whether you’re printing apparel, home furnishings or promotional materials, this machine delivers vibrant colors and sharp detail, making it ideal for both short-run and high-volume production.

With an easy-to-use interface and advanced features, including a precision feeding system and automated maintenance functions, the FD5193E ensures smooth, reliable performance with every print job. Plus, its compact design and rugged construction make it suitable for a variety of printing environments.

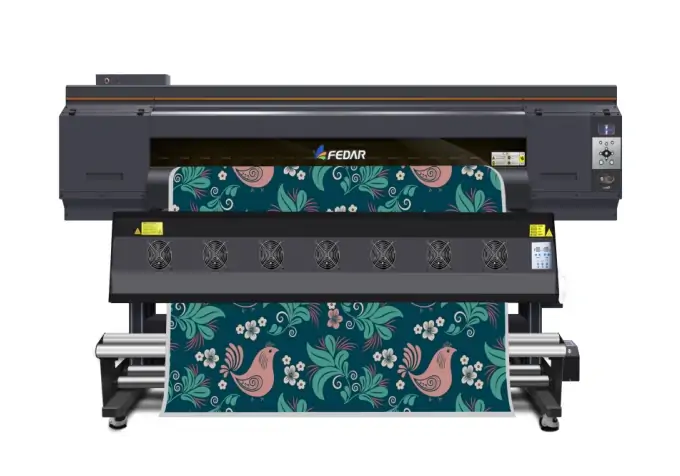

Fedar FD5193E Dye Sublimation Printer

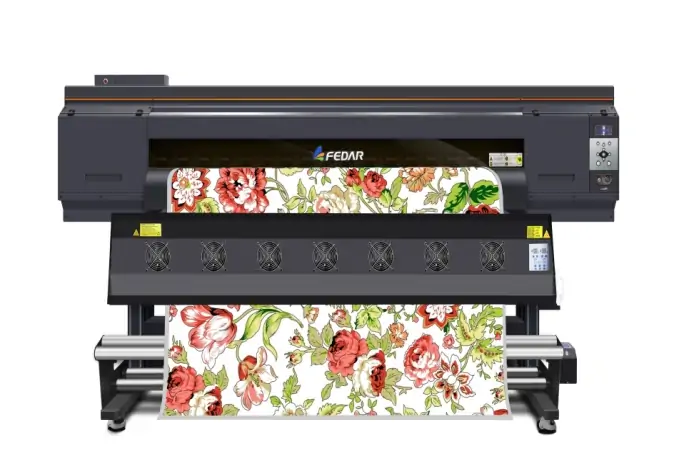

Fedar FD5193E Dye Sublimation Printer

Expand your textile printing capabilities with the Fedar FD5193E dye sublimation textile printer and open up new possibilities for your business. Contact us today to find out more!

Fedar FD5193E Dye Sublimation Printer Specifications:

Printer Model FD5193E
Printhead Type EPSON I3200-A1
Nozzle Qty 3pcs printheads
Height to Platform 2-5mm
Printing Speed 2pass   120sqm/h
3pass   85sqm/h
4pass    65sqm/h
6pass    45sqm/h
Ink Color C M Y K
Type Dye Sublimation
supply method Siphoning
Max Printing Width 1900mm
Printing Media Transfer Paper
Media Transfer Method Dual-drive tension take-up system, Auto air shaft feeding system
Drying Method External, Intelligent, and air-heat Integrated drying system
Moisture Mode Fully sealed auto moisturizing and cleaning
RIP Software Maintop6.0, Photoprint, Onyx, Wasatch NeoStampa, etc.
Image Format JPG, TIF, PDF, BMP, etc.
Computer System WIN7 64bit/WIN10 64bit
Hardware Hard disk:500G (system disk more than 100G)
GPU: ATI Discrete
CD-ROM: DVD-ROM
Memory:4G or more
CPU:Intel i5/i7 processor
Transmit Port Gigabit LAN
Work Environment Temperature 20-35 centi degrees;  Humidity 35-65%
Power Input Voltage 210-230VAC  50/60HZ  16A
Printing system 1000W
Drying system Max power 3500W
Dimension Printer Dimension 3066*880*1553mm
Packing Dimension 3250*950*1060mm
Weight Net Weight 351KG
Gross Weight 482KG



Any questions please contact info@fedar.net, +8619137185989, and directly visit the official website: fedar.net
