AB film for UV DTF Printer

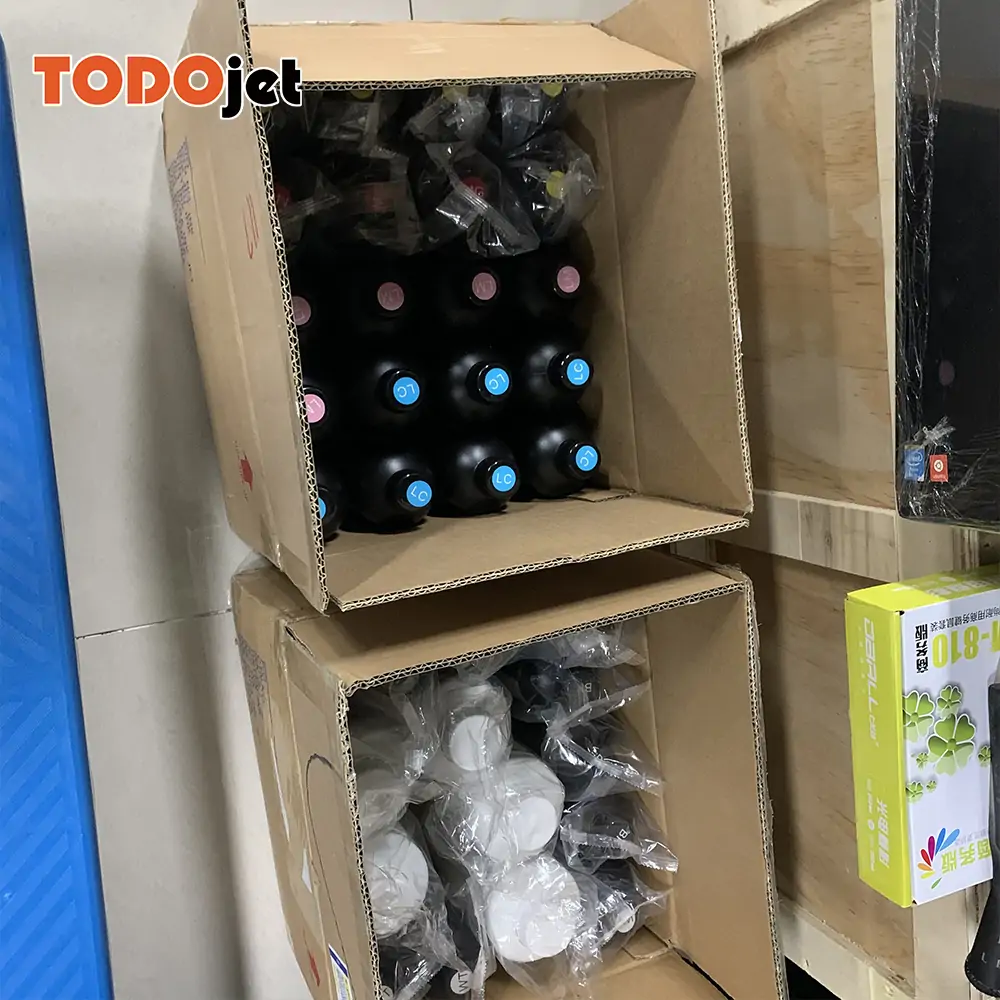

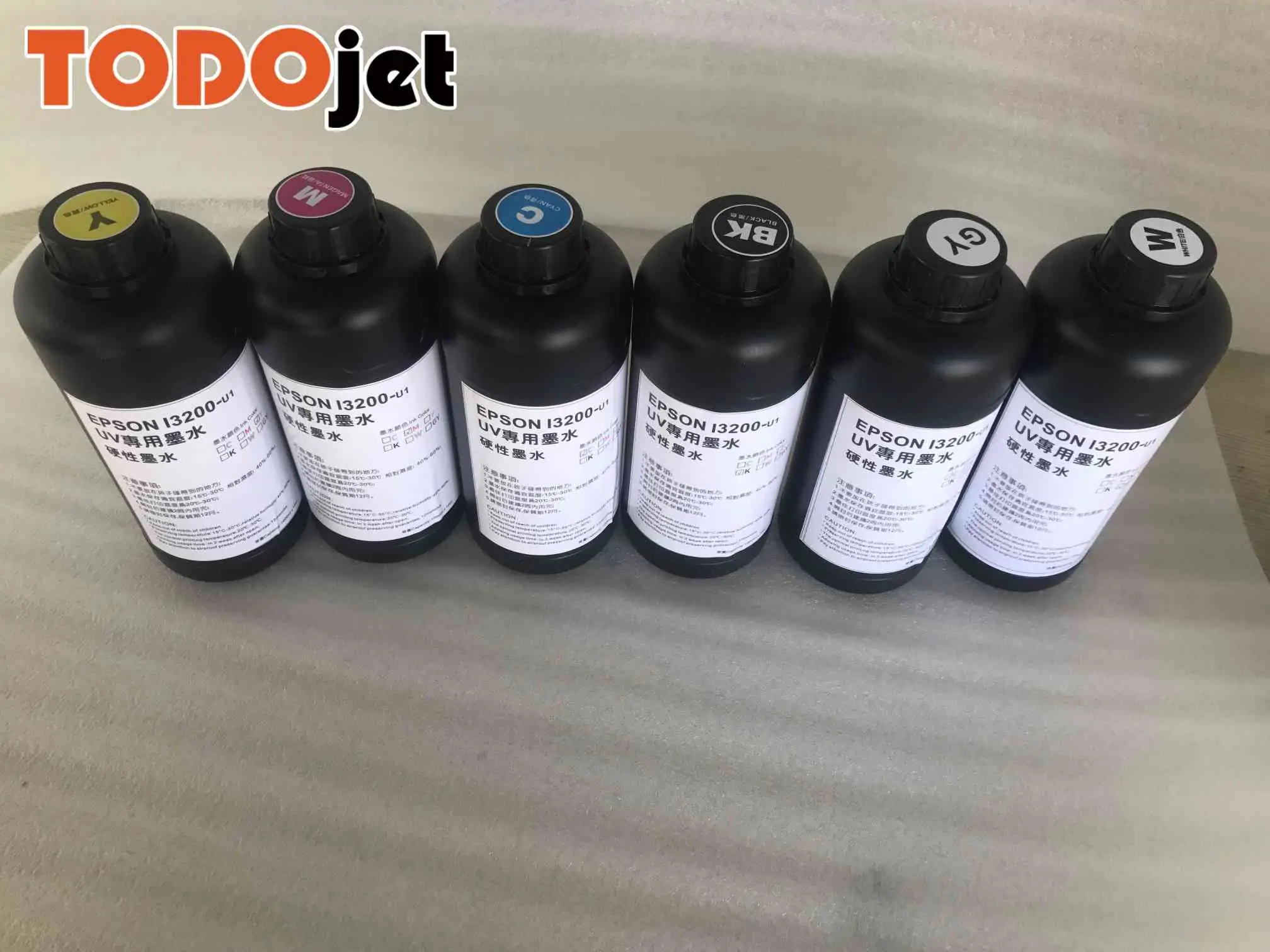

TODOjet UV ink is formulated to produce vibrant colors using Cyan, Magenta, Yellow, Black, White, and Varnish.
Combined, this UV inkjet ink enables companies to achieve full-color graphics and images on a wide variety of flat and cylindrical objects.

TODOjet UV ink can be used in practically any UV printers.

Adheres to a wide variety of rigid substrates including glass, plastic, and metal

CMYK + W + V available

UV printer (Ultraviolet LED Inkjet Printer) is a high-tech, plate-free full-color digital,printing machine, without material restrictions. UV printing products are very wide, glass,plates, various signs, crystal, PVC, acrylic, metal, plastic, stone, leather, etc. can be printed.UV printing can be done in one printing without making a plate, with beautiful colors and abrasion resistance, which is its core advantage.

Crystal label features

1, save labor, compared to screen printing, transfer printing these processes, with UV printing, 1 person can complete the printing, to reduce labor costs for enterprises.

2, environmental protection, pollution reduction, compared to weak solvents, screen printing that unpleasant and pungent smell, UV ink greatly reduces pollution.

3, personalized printing this advantage is outstanding, want to print what the pattern, directly through the ps software to do the map.

Q: What are the printhead of UV printers?

A: The printhead of UV printers mainly include the following types: Ricoh, Epson, Kyocera, Toshiba, Seiko, Konica, and the most used ones are Epson fifth-generation printhead, Epson 4720 printhead, Epson tenth-generation printhead and Ricoh G5 printhead, Epson It is a non-industrial sprinkler, the others are industrial printhead.

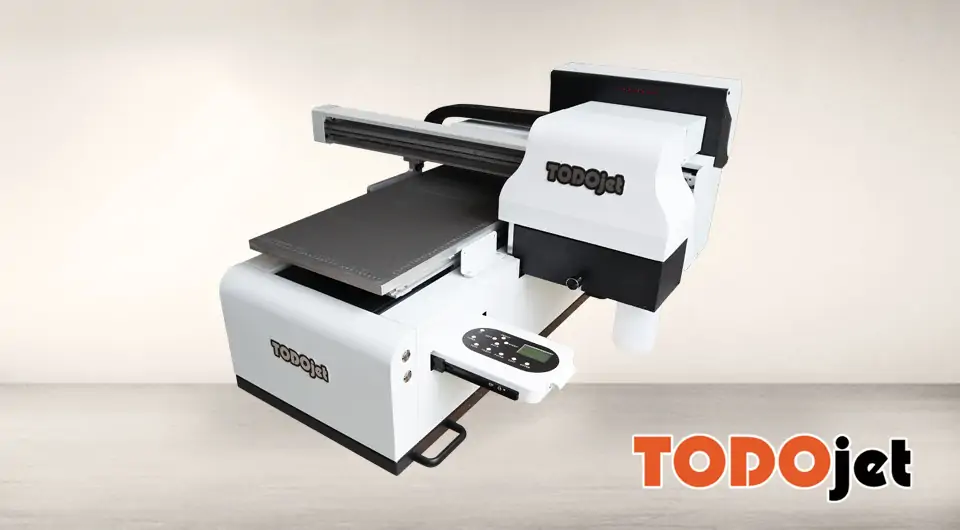

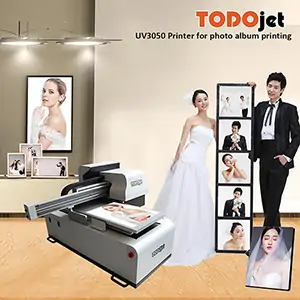

Model TD-UV3050
Print head 2pcs original Epson XP600
Print size 300*550mm
Max print height 15cm
RIP software Maintop/Photoprint
Max resolution 360*1440dpi
Ink type UV ink
Print color CMYK+W+V
Operating environment 18-28℃ 20-80RH
Voltage 110V-220V
Print speed 4pass 4sqm/h, 6pass 3sqm/h, 8pass 2sqm/h
Machine size/net weight 1040*1010*640mm/120kg
Packing size/gross weight 1150*1100*860mm/150kg
Print materials Acrylic, glass, plastic, pvc, wood, metal, etc

All aluminum suction platform

Even and stable air suction, so that the material is better adsorbed to the platform to ensure the flatness of the material and improve the smoothness of paper feeding

TODOjet UV printer can be used for digital store digital store for phone case printing, power bank printing,keypad printing,USB card printing,CD printing, welcome come to customized your own item.

Two Epson printheads support CMYK+W+V
User-friendly control panel, durable suction table
Continuous white ink circulation even if machine turn off
Auto cleaning system
Auto height detecting
Max print height is 15cm

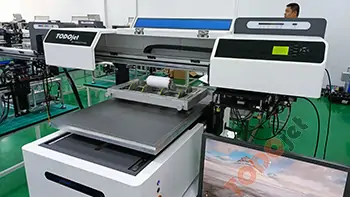

Support bottles&mugs printing

Two Epson printheads support CMYK+W+V
User-friendly control panel, durable suction table
Continuous white ink circulation even if machine turn off
Auto cleaning system
Auto height detecting
Max print height is 15cm
Support bottles&mugs printing

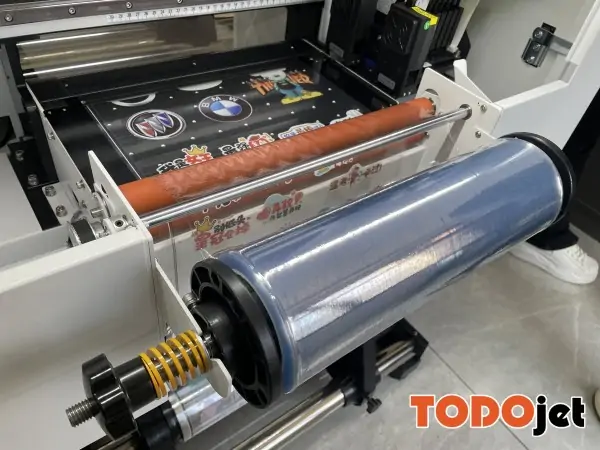

This 60CM Crystal Label UV Printer is designed for printing on small roll materials such as PVC transparent self-adhesive films. Perfect for creating custom logos, labels, and laminating designs, it provides high-quality, durable results for DIY printing projects.

-Environmentally friendly and non-toxic
-Support customization, free design
-High-definition printing, quality assurance
-Azo free, oeko-tex standard
-Choose TODOjet product quality and after-sales guarantee

UV DTF Technology for printing step
STEP 1:Place the glue-coated side of film A on the suction platform
STEP 2:Print pattern on film A
STEP 3:Use the laminator to laminate film A on B
STEP 4:Transfer on almost substrate
Plate Type:Flatbed Printer
Place of Origin:Henan, China
Usage:Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, phone case pritner
Automatic Grade:Automatic
Color & Page:Multicolor
Certification:CE
Warranty:1 Year
Marketing Type:New Product 2021
Machinery Test Report:Provided
Video outgoing inspection:Provided
Warranty of core components:1 Year
Core Components:Motor, PLC, Gear

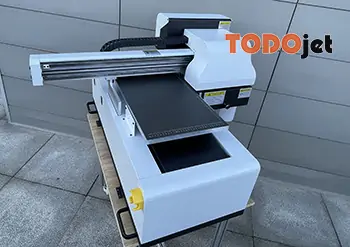

Advantages of 3040 UV Flatbed Printer:

Supports simultaneous CMYKLcLm+W+V printing for fast operation.
White ink stirring, circulating, and heating system ensures smooth printing.
Advanced auto up & down capping station ensures precise connection.
Auto detection system for media height adjustment.
Anti-static system ensures high-quality printing.
Internet port for high-speed, stable transmission of large files.
Ink spraying cleaning system prevents ink from spraying during operation.

TODOjet A3 size UV printer can print both on flatbed objects and also cylinder object. Not only can print on rigid materials such as metal,wood,crystal, plastic materials,but also support flexiable leather printing. So this table top UV printer hotsale in South Amercian,such as Colombia, Venezuela, Bolivia, Argentina, Chile, Peru，etc.
La impresora UV de tamaño A3 TODOjet puede imprimir tanto en objetos de cama plana como en objetos cilíndricos. No solo puede imprimir en materiales rígidos como metal, madera, cristal, materiales plásticos, sino que también admite la impresión de cuero flexible. Por lo tanto, esta impresora UV de sobremesa es un producto de gran venta en América del Sur, como Colombia, Venezuela, Bolivia, Argentina, Chile, Perú, etc.

As one of the most professional UV flatbed printer manufacturer, TODOJet attend many exhibitions such as DPES expo in Guangzhou, APPP Expo and Sign China Expo in Shanghai. We also attend many famous oversea exhibitions in printing field, such as FESPA exhibition, SGI exhibition,etc. Here we just launched new model A3 UV printer with two XP600 heads at Shanghai APPP Expo 2021.

One of the most commonly raised questions from people regarding UV printer is “Do UV printer emit radiation?”Before we can answer that, lets find out a little more about radiation.

UV-F604 UV DTF Printer
Can be applied to a variety of material surfaces regardless of material restrictions

-WHEN ENVIRONMENTAL IMPACT IS A CONCERN
-WHEN IT’S A RUSH JOB
-WHEN A SPECIFIC LOOK IS DESIRED
-WHEN SMUDGING OR ABRASION IS A CONCERN
-WHEN PRINTING ON PLASTIC OR NON-POROUS SUBSTRATES

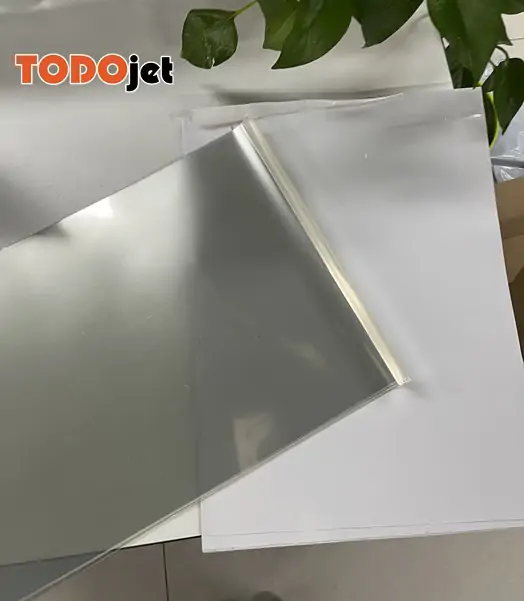

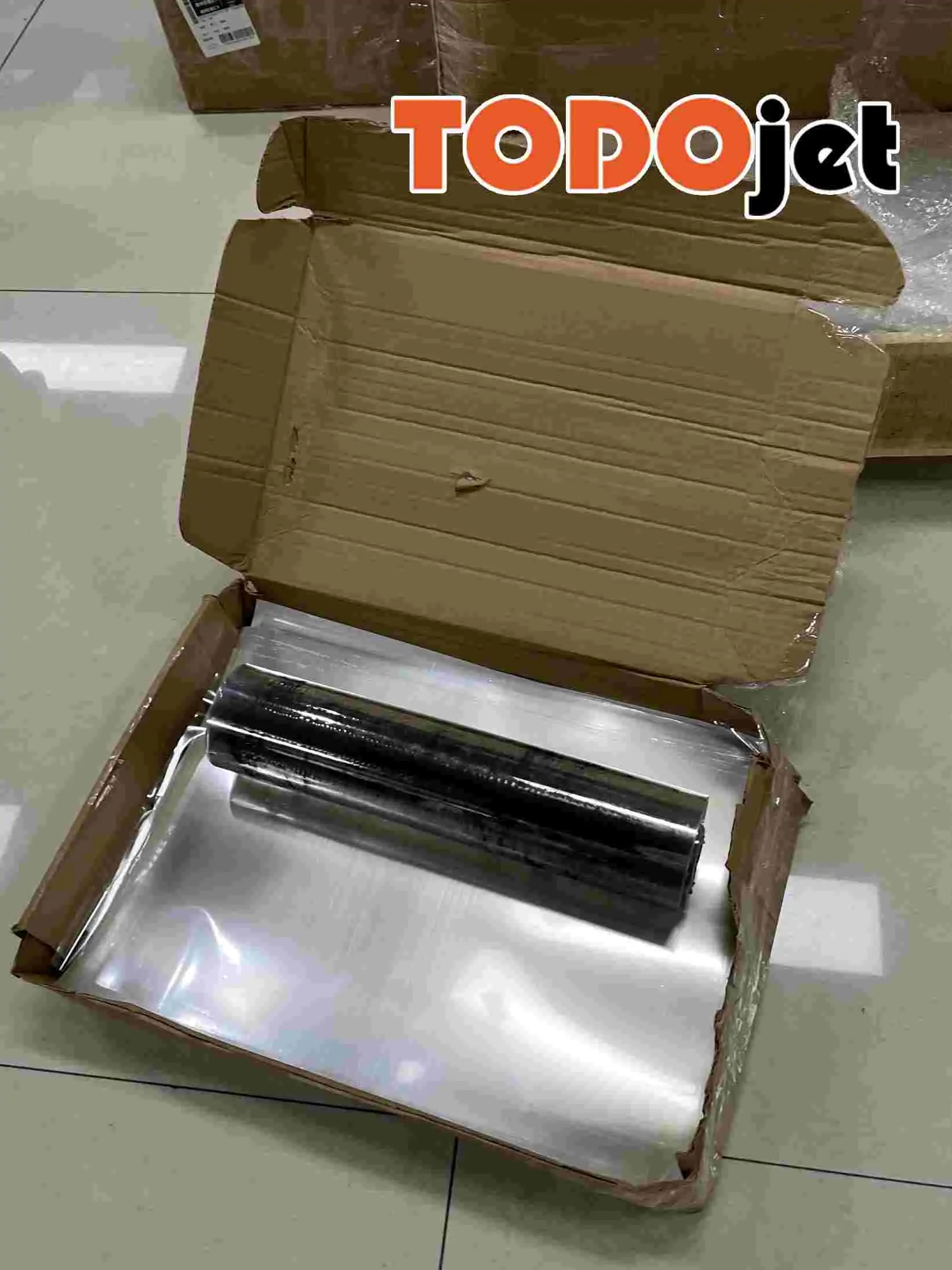

The new technology of UV DTF Printer,printing on film A and then laminating with film B, then transfer to any rigid material surface. Film A with A3 size sheet,we usually printing on glue side of film A. Film A one bag is 200pcs. And Film B usually a roll package,one roll is 30cm width and 100m length. This film used for crystal sticker printing, LOGO printing. More printing solutions, kindly contact with TODOjet team.

Ultraviolet (UV) printing uses a different type of ink than conventional print methods.Instead of liquid ink, UV printing uses a dual-state substance which stays in liquid form until it’s exposed to UV light. When the light is applied to the ink during printing, it cures and dries under the lights mounted on the press.The advantages of UV printers for printing nail art patches are also very obvious, not only are efficient and low-cost, but also can print relief effects, and the patterns are exquisite.

TODOJet Multi-functional UV flatbed printer with various applications, this UV printer can print on any kind of substrate, so it can be used in many different Industries.such as 1.gift store for souvenirs printing like wood printing,crystal printing,plastic printing,metal printing. 2.Digital store for phone case printing, power bank printing,keypad printing. 3.Student center for any card printing,pen printing,notebook printing. 4.Homeware decoration like carpet printing, ceramic printing,bottle printing. 5.Photograph studio for wedding photo album printing,CD printing. 6.Package filed for small cosmetic box printing, gift box printing. 7.Electrical filed for PCB printing.

TODOjet A3 UV Led Flatbed Printer with multi-functions,it can print on wood, ceramic,glass, metal, acrylic etc, not only flatbed, but also can print on bend, cylinder objects like bottle, printing output with good 3D texture or embossed effect. This is the desktop UV printer show at DPES expo in 2018.

Hot sale A3 size UV printer in 2022, with double printhead XP600, support 6 colors CMYK+W+V. Our UV flatbed printer can print on any substrate directly such as metal,wood,acrylic,plastic and so on, which is suitable for many industrials.

UV DTF Film is using a brand new UV printing technology. We have improved the existing UV machine so that the pattern can be printed directly on the film. You can print out the design you want and easily transfer it to various surfaces, especially uneven hard surfaces: glass material, wood material, resin material, plastic material, ceramic material, etc, and no other processing is required. The pattern has both glossiness and three-dimensional effect, good hand feeling, and can be produced in small batches.
Product name:Uv Printing Machine 6040 Size Digital Uv Flatbed Printer
Print Dimension:610*420mm
Print head:2pcs Epson i3200/ 2pcs Epson F1080
Max printing height:20cm
RIP software:Photoprint
Ink color:CMYK+W/ CMYKLcLm+W
Ink Type:UV Curing Ink
Voltage:110V/220V 50-60HZ
Printing materials:Glass, plastic, acrylic, metal, wood, etc
Max Resolution:20CM
Print speed:720*720dpi 12sqm/h, 720*1080dpi 10sqm/h, 720*1440dpi   8sqm/h
Machine size/net weight:820*1710*780mm/140kg
Packing size/gross weight:970*1860*980mm/180kg

A+B Film Instructions:
1.Film A is the printing side, tear off the protective paper, and print with the adhesive side facing up. The printing sequence is: white ink-color ink-varnish;
2.The B film is hung on the support of the laminator. When laminating, the matte surface must be attached to the glue surface, otherwise it could not be take off. The film temperature is 80 degrees, the slower the better.

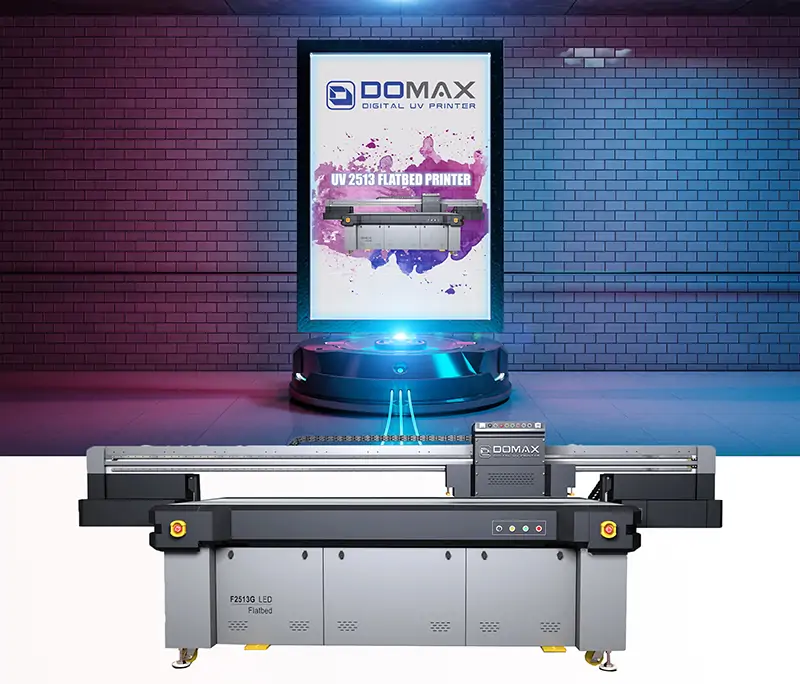

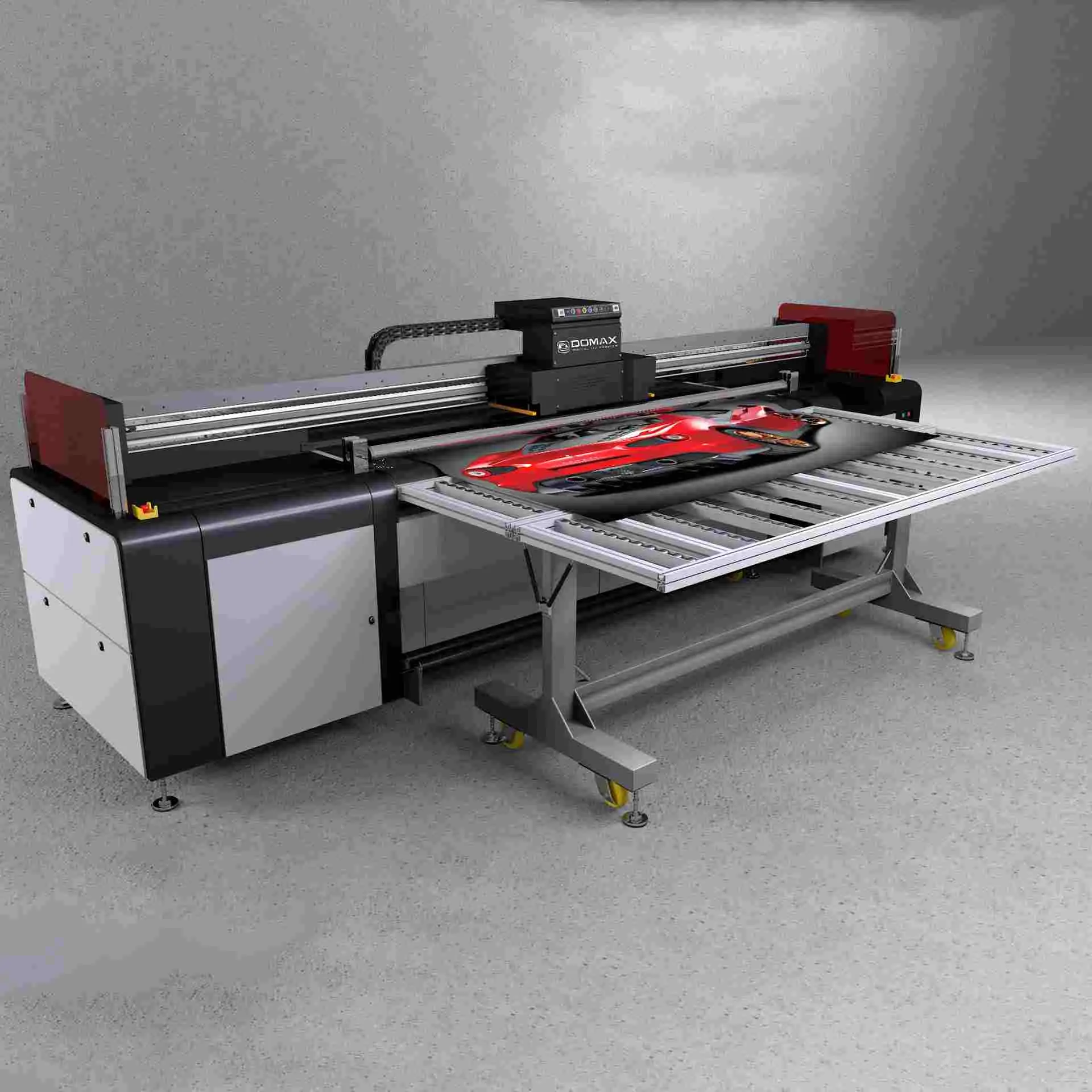

The uv 2513 flatbed printer is a kind of “non-contact” inkjet high-tech digital printing equipment, which can print “photo-level” color images on any material surface.High-definition printing instead of screen printing, soft and hard materials can be printed, scratch-resistant, wear-resistant, waterproof and sunscreen.Meet all your needs for personalized customization/mass production.Can print cylinders, a machine, not only flat printing cylinders can print.

I often hear two kinds of sounds. One is from the UV flatbed printer manufacturer. “Using the manufacturer’s UV ink, the life, smoothness of the print head, and post-printing color follow-up provide warranty. Without the manufacturer’s UV ink, the print head and ink path appear. System failure is not covered by the warranty. ” The other one is from the customer side “Can I not use your UV ink? The price is more expensive, so if there is a problem in the later stage, please pay your to solve it.”

Why choose us
1. Good materials are more resistant to corrosion
2. High viscosity, more firm and not easy to fall off
3. Good waterproof performance
4. High wear resistance, good quality, not easy to scratch

Industrial UV printers take digital images and print them directly onto a substrate. These machines utilize cyan, magenta, yellow, black, white and varnish UV inks to reproduce stunning graphics on a variety of materials such as plastic, glass, stainless steel, ceramic and more. Most of UV printer manufacturers recommend that buyers buy the specified ink from them, why is this?

Applicable shapes: round, square, rectangle, oval, special-shaped, irregular shape
Scope of application: hardware, tools, clothing, daily chemicals, tea, etc.
