Technical parameters
Printhead | Epson i3200 / Ricoh G5 | Printhead No. | 2-8H |
Print Size | 2500mm | Media Thickness | 1mm-35mm |
Ink Type | Environment-friendly UV Curing Ink | Media Adsorption System | The suction force can be adjusted |
Ink Color | Standard: C M Y K LC LM W, Vamish is optional. | Ink Supply System | Auto Negative Pressure Ink Supply System |
Ink Detection System | voice lntelligent Alarm System | RIP Software | Standard: PhotoPrint. Print Factory and Onyx are optional. |
Media Type | Wall Paper, Film, Photo Paper, Flex, Banner, PP Film, VinyI, | Media Process System | 4 Zones Vaccum Platform Available for Different Kinds of Media |
File Forms | TIFF,JPEG,PDF,EPS,PNG,AI.BMP… | Packing | 5000mm*1600mm*1800mm (Length*Width*Height) |
Power/Power Rating | 220v 50HZ/60HZ/6.5Kw | Lift Function | Automatic Lifting of the Front, Intelligent Detection of Material Thickness |
Operation System | Win7 or Win10 64bit Interface Port: Gigabit LAN | Print Speed Tested on linear print without feather |
High Speed Mode 56.7㎡/h |
Hard Disk: 500G or more GPU: ATI Discrete GPU | Production Mode 34.2㎡/h | ||
Memory:8G CPU: Intel i5 Processor SSD:More than 128G | Hyperfine Mode 29.2㎡/h | ||
Working Environment | Independent,Clean, Low Dust, Low Light, Well Ventilated Workshop TEMP.:15℃-28℃ Humidity:40%-70% |
Ventilation Device | Ventilation Fan is Necessary. Air Exhaust Volume: 600 CFM |
Product Details Show

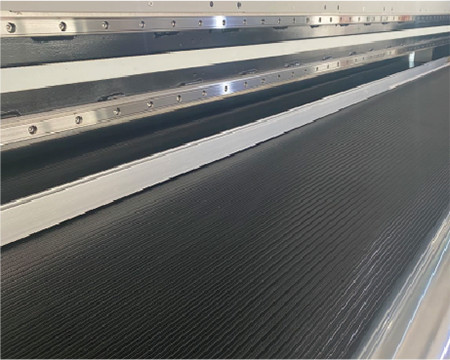

1.Belt Convey System

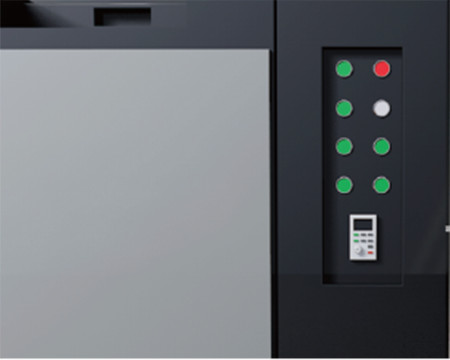

2.Key base cover

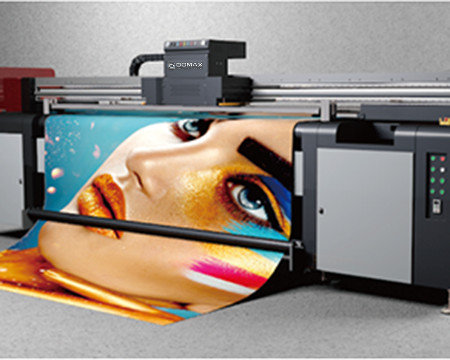

3.Overall Frame Structure
4.High-precision rubber roller feeding
Why choose us
1.Are you Factory or Trading company?
We are Factory (Manufacturer)
2.Who are we?
We are based in Henan, China, start from 2014,sell to South America(27.00%),Domestic Market(20.00%),Western Europe(15.00%),Mid East(8.00%),Southeast Asia(7.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Central America(3.00%),Southern Europe(2.00%),Oceania(1.00%),Africa(1.00%),Northern Europe(1.00%).
3.How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4. Why should you buy from us not from other suppliers?
Zhengzhou Domax is a professional manufacturer engaged in R&D, production and sale of digital printers,we specializing in research, manufacture, sale and service of UV printer,DTF printer,and other inkjet printing machines and related consumables.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish.
