Digital 8 Epson Head dye sublimation printer printing machine large format fabric textile inkjet printer

Digital dye sublimation printing is an advanced printing technique where designs are digitally printed onto special transfer paper using sublimation inks. These inks turn into gas when heated and bond with polyester fabrics or coated surfaces, creating vivid, durable prints. It’s widely used in producing customized apparel, banners, and promotional items due to its high color vibrancy and long-lasting results. This process is ideal for printing on items like sportswear, flags, and home décor products, offering excellent detail and bright, bold colors without the risk of fading or peeling.

Rated 4.5/5 based on 481 customer reviews
Share:
Content

Digital dye sublimation printing offers unmatched color vibrancy and durability, making it the go-to method for high-quality fabric and promotional item production. When scaling up for larger production needs, advanced equipment becomes crucial. This is where the Fedar 8 Head Dye Sublimation Printer shines. With its robust capabilities, this printer delivers exceptional speed and precision, thanks to its 8 Epson printheads, designed to handle high-volume jobs with efficiency. Ideal for textile printing, banners, and large format designs, it ensures consistent and vibrant prints on a variety of polyester-based materials, perfect for businesses looking to maximize production without compromising on quality.


Product:

8 Heads FEDAR FD5328E
Model: FEDAR FD5328E Sublimation Printer
Printhead Quantity: 8
Printhead: Epson l3200-A1
Print Width: 3200mm
Print Colors: CMYK
Max.resolution(DPl):360*1200DP1Max speed CMYk: 1pass 420m/hInk Type: Sublimation Ink,Water based Pigment inkRIP Software:Printfactory, Maintop, Flexiprint, Onyx, Neostampa

Here is the table based on the provided information:

| **PRODUCT PARAMETERS** | **Details** |
|———————————-|——————————————————————————|
| **Model** | FEDAR FD5328E Digital Textile Printer |
| **Printhead** | Type: EPSON I3200-A1, Nozzle Quantity: 3200 |
| **Quantity** | 8 |
| **Print Speed** | 360*1200dpi (1 pass): 420m²/h <br> 360*2400dpi (2 pass): 210m²/h |
| **Ink Type** | Sublimation Ink, Water-based Ink (Dye or Pigment) <br> Color: CMYK |
| **Print Width** | 3200mm |
| **Print Media** | Transfer Paper |
| **Material Transmit** | Inflatable Roller Auto Feeding and Take-up Media System |
| **Dryer** | Extra Intelligent Fan Dryer |
| **Moisture Mode** | Full Seal Auto Moisture and Cleaning |
| **RIP Software** | Maintop 6.0 (standard equipped), Photoprint 19, Onyx 19, Neostampa |
| **Image Format** | JPG, TIFF, BMP, PDF, etc. |
| **Computer System** | Windows 7 64-bit, Windows 10 64-bit |
| **Transmit Port** | Giga-bit Ethernet Port |
| **Computer Configuration** | Hard Disk: 500GB or more <br> GPU: ATI Mobility <br> Memory: 4GB RAM <br> 8GB Random Access Memory <br> CPU: i7 processor or above |
| **Working Environment** | Temp: 18°C-35°C <br> Humidity: 35%-65% |
| **Power** | 210-230V, 50/60HZ, 16A <br> Machine: 1500W <br> Dryer: Max 10800W |
| **Machine Dimension** | 5760*1450*1850mm |
| **Packing Size** | 5280*1180*1770mm |

Details:

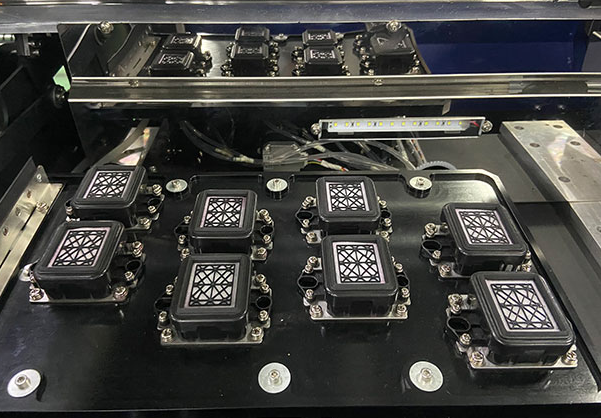

Capping Station:
Fedar FD5328E Digital Sublimation Printer adopts a finished integrated capping station equipped with an advanced intelligent nozzle cleaning and moisturizing device. This provides safe and convenient nozzle cleaning and maintenance functions, making operation and maintenance more efficient. The working principle of the automatic ink cleaning function: the digital sublimation printer draws the ink through the nozzle of the ink pump in the ink stack to achieve the purpose of cleaning and moisturizing, preventing the nozzle from clogging.

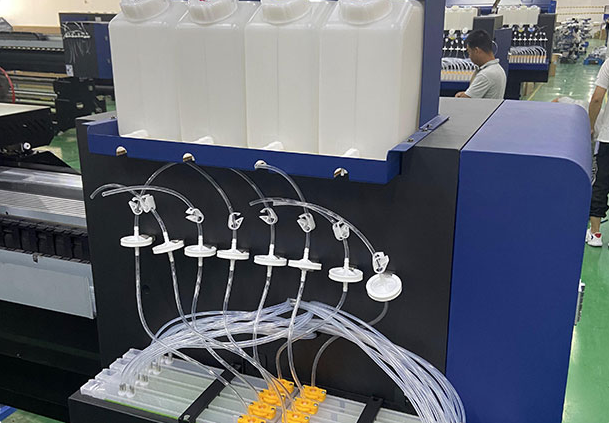

Ink Tank:
The sublimation printer adopts 5-liter bulk tanks with an ink starving alarm system to ensure smooth printing operations. The powerful continuous ink supply system supports higher production efficiency, avoiding frequent ink shortages and reducing the need for constant monitoring during production.

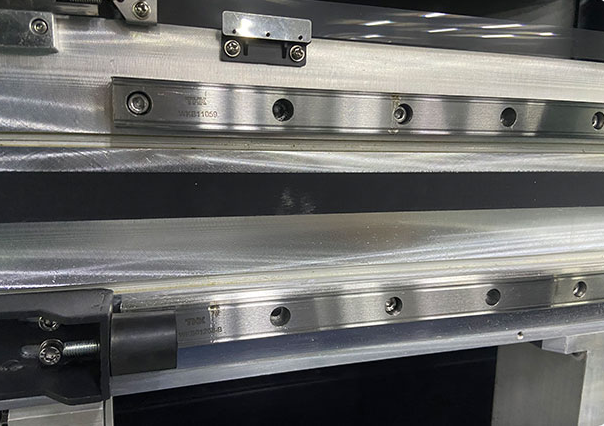

Guide Rail:
The printer is designed with double silent guide rails made of alloy steel, allowing the carriage to run more precisely and move smoothly. This enhances the overall printing accuracy and stability.


Motor:
This Fedar Digital Textile Printer uses a Panasonic industry servo motor. It offers high-speed drive, linear decoding, minimal error, high precision, stable operation, and a long lifespan.

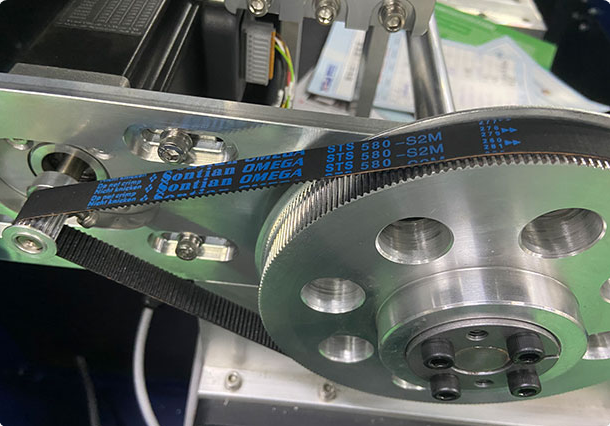

Pulley:
Fedar FD5328E Sublimation Printer features a 10 cm thick, one-time formed aluminum alloy beam with high precision servo motors on the X & Y axes. The aluminum timing pulley ensures stable movement during transmission.

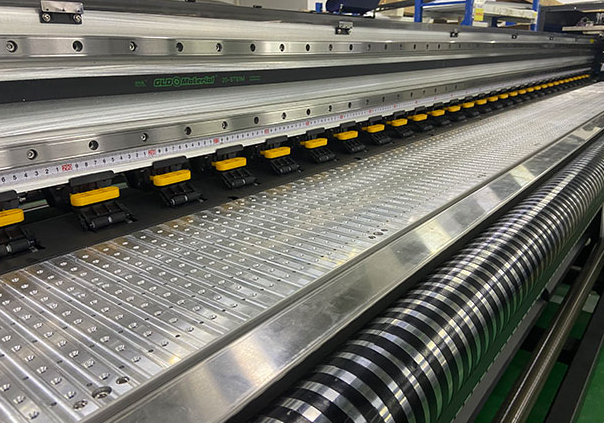

Pinch Rollers:
Specially designed pinch rollers made from Du-Pond rubber, with each roller able to lift independently to eliminate wrinkles caused by media movement.

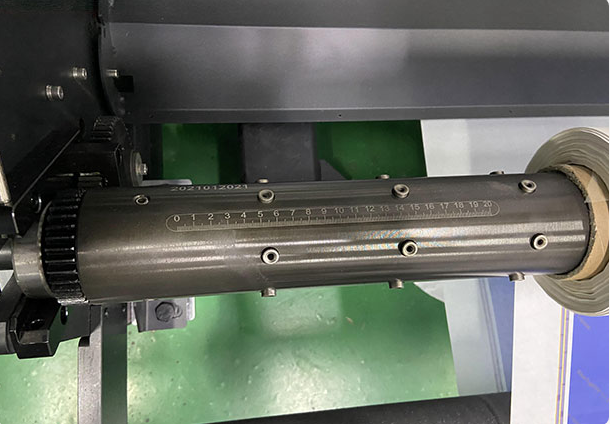

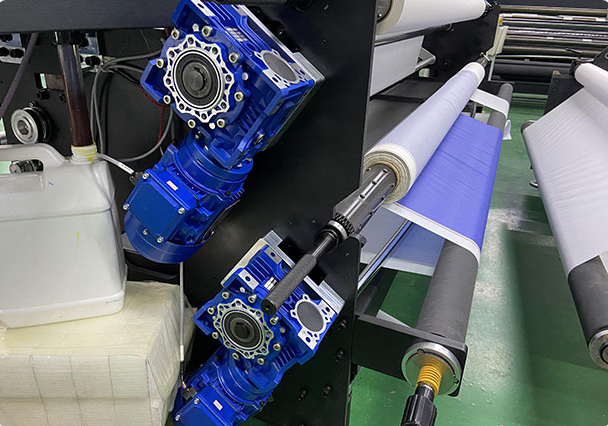

Air Inflatable:
The air inflatable system of this Sublimation Printer has a large bearing weights and offers a long service life, and the paper feeding and rewinding force is even.

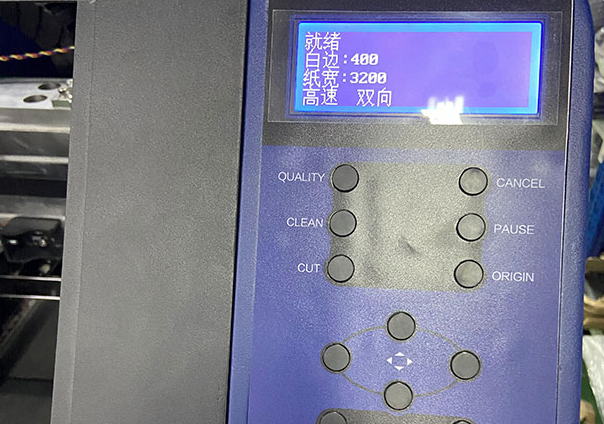

Keyboard:
All functions of the Sublimation Printer are integrated into the Printer Controlling Software. Some shortcut functions can also be operated directly from the control panel.

Any questions please contact ? sale@fedar.net,+86 15515715397, and directly visit the official website: https://www.fedar.net/
