Fedar Dye Sublimation Printers FD7428E: Your Solution for High-Speed, High-Quality Textile Printing

We have seen very long and wide carpets in hotels, billiard halls, exhibition centers, business receptions and other scenes. These carpets are solid colors, dark colors, various patterns, etc. How are these super long and super wide carpets made? Today I would like to recommend a 4.2m super wide industrial digital printing machine – Fedar FD7428E. Let me tell you quietly that its printing speed reaches 710㎡/h.

Rated 4.8/5 based on 551 customer reviews
Share:
Content

We have seen very long and wide carpets in hotels, billiard halls, exhibition centers, business receptions and other scenes. These carpets are solid colors, dark colors, various patterns, etc.
How are these super long and super wide carpets made?

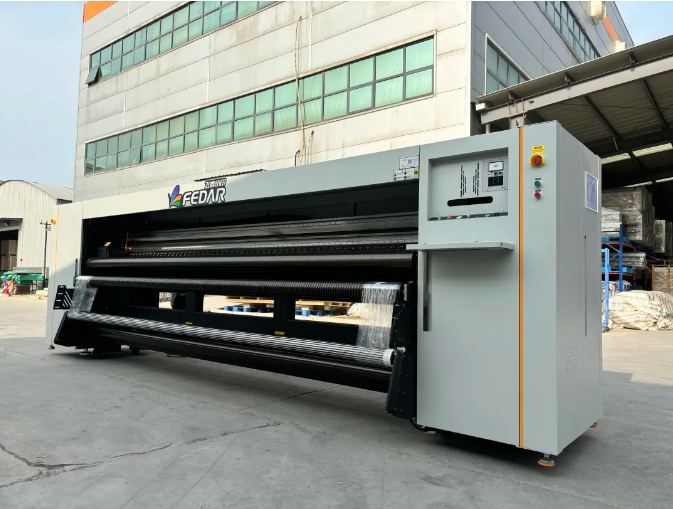

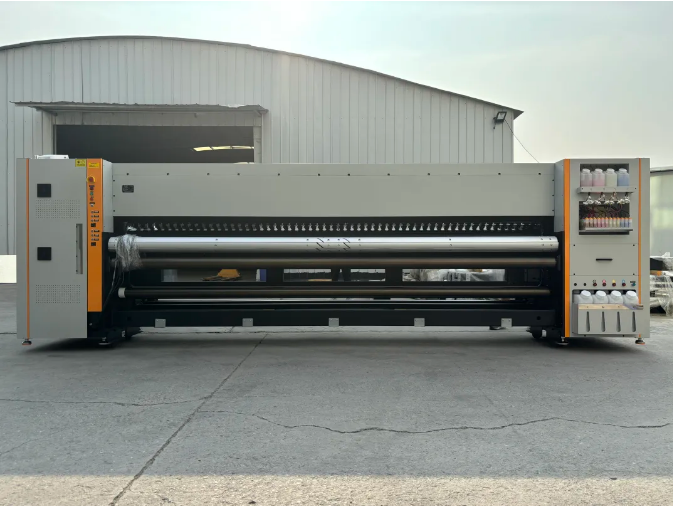

Today I would like to recommend a 4.2m super wide industrial digital printing machine – Fedar FD7428E. Let me tell you quietly that its printing speed reaches 710㎡/h.

Next, let’s take a closer look at this industrial digital printing machine from these 8 details

1. Genuine Epson I3200-A1 printhead.

The Epson I3200-A1 printhead has 3,200 nozzles and variable ink droplet technology, which improves printing accuracy, enhances color reproduction, and supports up to four levels of grayscale printing.

2. Strip type paper expansion roller + slotted suction board

New upgrade! Make the paper feeding more even, effectively solve the wrinkling problem of thin paper, high-precision output, and avoid bulging.

3. Industrial grade high precision machining integrated beam and mainframe

Ensure that the equipment can run more stably and smoothly at high speed for a long time, greatly improve the printing quality and extend the service life of the machine.

4. Front and rear electromagnetic damping control system

The front and rear electromagnetic damping control systems are combined with the ultrasonic tension rod control system to ensure the smooth movement of the paper during printing, making the paper feeding smoother and the winding neat and tight, thereby improving the printing quality.

5. Add safety grating device to the front door of the machine

It reduces the possibility of operator injury, protects the operator’s personal safety, and is more humane.

6. 3-speed adjustable pinch roller

The pneumatic pinch wheel control method with 3-speed adjustable pinch rooler makes paper loading and feeding more convenient and faster, and the pressure control is more precise.

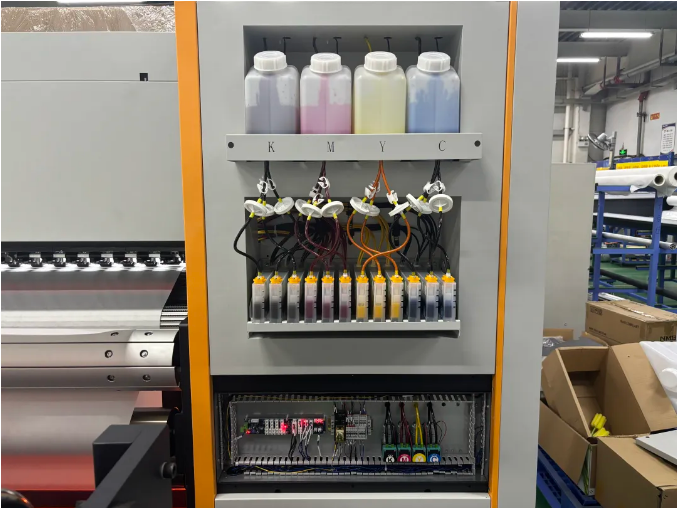

7. 15L large capacity continuous ink supply system

The 15L ultra-large continuous ink supply system can achieve long-term stable printing without continuous ink flow and ink flying.

8. Industrial servo drive reducer

The take-up and feed-in system uses an industrial-grade servo-driven reducer, which has high speed, high precision, and smoother paper collection and release.


Fedar FD74215E Printer Specification

Model FD7428E
Printhead Type: Epson I3200-A1
Resolution:3200DPI
Printing Speed 360*1200dpi  1PASS: 440m²/h
360*2400dpi  2PASS: 225m²/h
Ink Type Sublimation Ink
Ink Color CMYK(Optional 12 Colors)
RIP Software Maintop, FlexiFRINT, ONYX, Neostampa and etc. Maintop6.1(standard Equipped)
Print File Format BMP, TIF, JPG, PDF Etc.
Interface Gigabit Port
Heating System Extra Front Heating System
Feeding Method Roll to Roll, Leaf
Color Management ICC Based; Density & Curves Adjustable
Power Supply 50HZ/60HZ, 110~220V, 10A
Temp. 18℃-30℃
Humidity 35%-65%
Powder Supply Input Voltage: 210-230VAC

Machine Printing Power: 9.5KW

Dryer: Max 7.2KW

Printer Size Dimension: 6005*1215*2090mm
Package Size  Packing: 6170*1385*2130mm
Gross Weight 600KGS
