Hot Sell Fedar Direct to Film FEDAR FD70 DTF Textile Printer

Fedar DTF Printing is known for its innovative digital printing technology, which allows for high-quality, vivid prints on various fabrics. DTF (Direct-to-Film) printing involves printing designs on special films and then transferring them to textiles using adhesive powder and heat. This technology is particularly popular for its ability to handle complex designs, produce vibrant colors, and offer a durable finish on garments like T-shirts, hoodies, and more. The process is highly efficient and versatile, making it ideal for both small and large production runs.

Rated 4.6/5 based on 531 customer reviews
Share:
Content

Building on its expertise, Fedar’s FD70 DTF Printer takes these features to the next level. This model is equipped with advanced printhead technology, ensuring faster printing speeds and greater precision. It also supports multiple color modes, making it suitable for a wide range of fabrics and designs. The FD70 is designed to be user-friendly while delivering consistent, high-quality results, making it a great choice for businesses seeking to expand their printing capabilities.

Product:

60cm DTF Printer FEDAR FD70
Model: FEDAR FD70 DTF Printer
Printhead Quantity: 2
Printhead: Epson l3200-A1
Print Width: 600mm
Print Colors: CMYK+W
Max.resolution(DPl):3200DPI
Max speed CMYK: 6pass 8m²/h
Ink Type: cycle white Ink supply System
RIP Software: Maintop, Flexiprint

PRODUCT PARAMETERS Details
Model FEDAR FD70 DTF Printer
Printhead Quantity 2
Printhead Epson 13200-A1
Max. Resolution (DPI) 3200 DPI
Print Width 600 mm
Print Colors CMYK + White
Max Speed (CMYK) 6pass 8m²/h, 8pass 6m²/h
Bulk Tank Capacity 1.5 L
Material Transmit Single Motor System
Ink Type Pigment Ink
Media PET Film
Max. Media Taking up 100 m
Max. Media Feeding 100 m
Media Feeding Normal Feeding System
Transmit Port Ethernet
RIP Software Maintop, Flexiprint
Computer System Win 7/Win 8/Win 10
Color Management ICC Profile
Ink Supply Cycle White Ink Supply System
Work Environment Temp: 11°C-30°C, Humidity: 35%-65%
Power AC220V, 50HZ/60HZ
Printer Size 1630*835*1350 mm
Package Size 1750*990*750 mm
Gross Weight (GW) 205

Here’s the formatted version of the FD70 DTF Printer Description with section dividers:

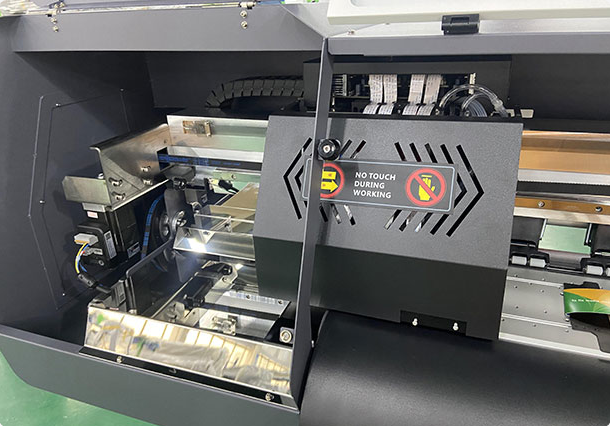

Carriage
This top-grade digital DTF printer is equipped with a height-adjustable carriage, allowing the head position to be adjusted according to the media.


Motor
The FD70 DTF digital printer uses LeadShine business integrated servo motors on both X & Y directions for precise movement and stability.

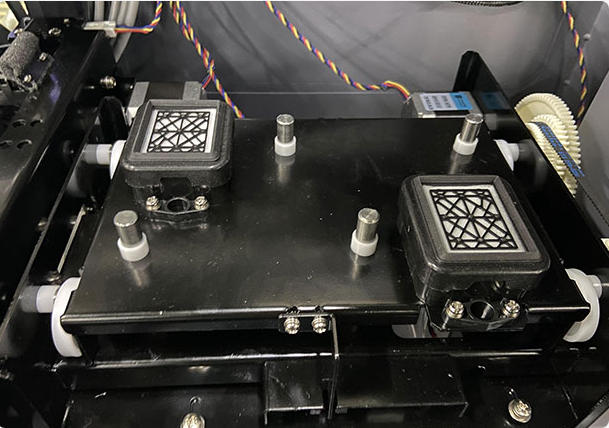

Capping Station
The FD70 features an automatic lifting capping station, providing automatic cleaning, pumping, and moisturizing functions, making it more convenient to operate and maintain.

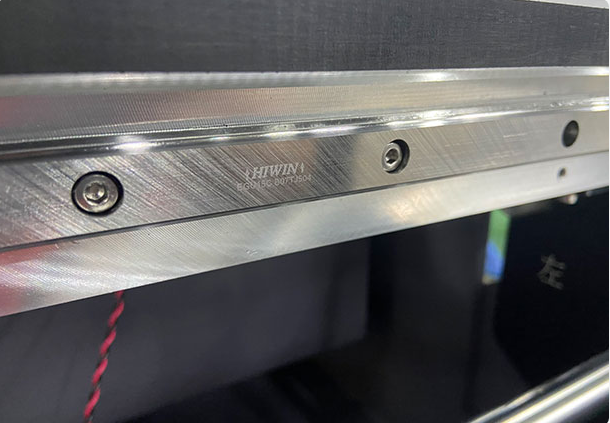

Guide Rails
The FD70 DTF digital printer adopts HiWIN guide rails, which ensure stability, a longer working life, and lower noise levels.

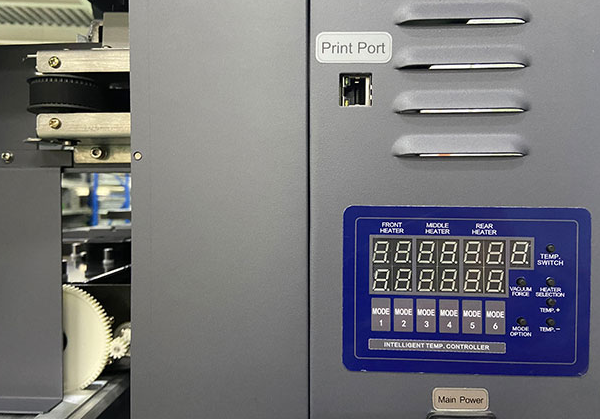

Temperature Control
Equipped with a 3-section body heater, the FD70 ensures fast drying. Each heater operates independently, allowing precise control over the drying process.

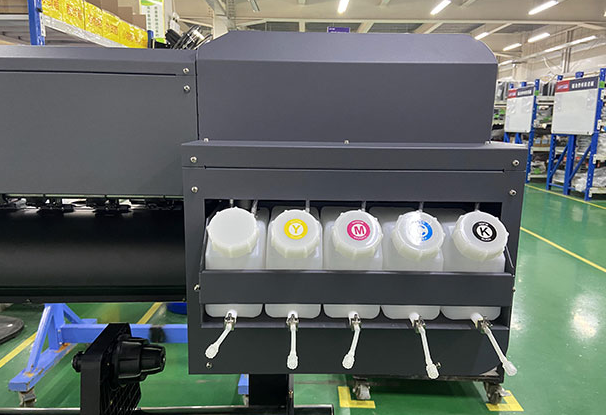

Ink Tank
The FD70 DTF printer is equipped with an ink circulatory system and intermittent white ink stirring, which can be adjusted through the printing software.


Beam
The FD70 top-grade digital DTF printer features a high-precision machined beam, providing stability and smooth movement of the carriage.
