TD-UV6090 Flatbed Printer

Advantages

Epson i3200 heads and Epson F1080 heads are optional
User-friendly control panel, durable suction table
Continuous white ink circulation
Auto cleaning system
Auto height detecting
Max print height is 20cm
Support bottles&mugs printing

If you want this model, please contact us

Detail Display

All products are subject to strict quality control and they are certified according to the corresponding standards.

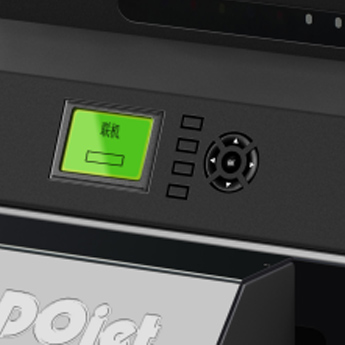

Humanized Operation Panel

Clear mark, makes work easier

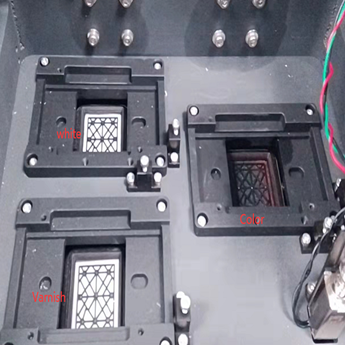

Arrangement of i3200/XP600/G5 printheads

we have CMYK+W+V,UV6090 Support white and color varnish printing

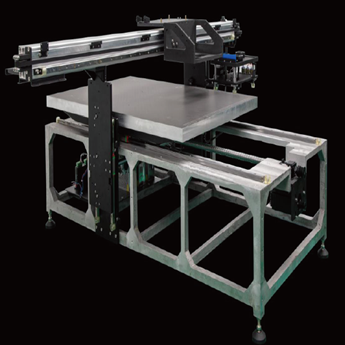

Machine as a whole

Integral aluminum casting body + Y-axis screw drive

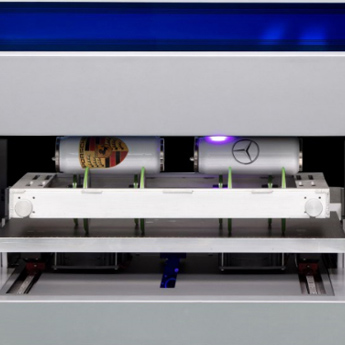

Support Rotary Printing

Special rotary clamp can meets bottles (with handle) printing

Product Parameters

Model	TD-UV6090
Print head	2pcs Epson i3200/ 3pcs Epson XP600
Print size	610*910mm
Max print height	20cm
RIP software	Photoprint
Max resolution	720*1440dpi
Ink type	UV ink
Print color	CMYK+W/ CMYKLcLm+W+V
Operating environment	20-30℃ 35-65RH
Voltage	110V-220V
Print speed	720720dpi 12sqm/h, 7201080dpi 10sqm/h, 720*1440dpi 8sqm/h
Machine size/net weight	14001710780mm/220kg
Packing size/gross weight	15501860980mm/360kg
Print materials	Acrylic, glass, plastic, pvc, wood, metal, etc

Watch Video

Samples

Application : Acrylic, glass, plastic, pvc, wood, metal, etc

Other Accessories

Print head

UV ink

Rotary clamp

Mould/Jigs/Frame

If you need accessories, please contact us

2021 Series TD-UV6090
